JNOPTIC Filter JNO-B(B)
Download Catalog _ JNO-B(B)
– Filter set for EGFP / FITC / Cy2 / AlexaFluor488
– Chroma Filter Model No. : 39002

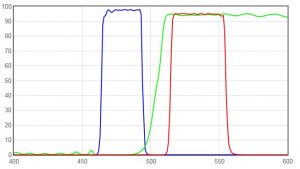

JNO-B(B) Spectrum
| Filters | Type |
| AT480/30x | EX |
| AT505DC | BS |
| AT535/40m | EM |
주요 형광 색소(Fluorochromes)와 스펙트럼 비교
* FITC VS JNO-B(B)
* GFP VS JNO-B(B)
* AlexaFluor488 VS JNO-B(B)
JNO-B(B)필터를 이용한 Sample Image 촬영
Filter Set : JNO-B(B)
Camera : AcquCAM 23GR2
C-mount adapter : 0.5x
Lense : UPLAPO20X
Sample : bovine pulmonary artery endothelial cell, BPAEC
Camera : AcquCAM 3G
C-mount adapter : 0.5x
Lense : UPLAPO20X
Sample : bovine pulmonary artery endothelial cell, BPAEC
Camera : AcquCAM 5G
C-mount adapter : 0.5x
Lense : UPLAPO20X
Sample : bovine pulmonary artery endothelial cell, BPAEC
JNO-B(B)필터에 적합한 형광색소
- Acridine Orange + DNA
- Alexa Fluor 488™
- Atto 488
- Azami Green
- BODIPY FL/pH7.2
- Calcein
- Calcium Green™-1
- Cy2™
- DiO
- DyLight 488
- EGFP
- Emerald GFP
- FAM
- FITC
- Fluo-4
- GFP
- LysoTracker Green/pH 5.2
- MitoTracker Green FM/MeOH
- mWasabi
- Oregon Green™ 488
- SYBR® Green I
- SYTO 9/DNA
- ZsGreen1
JNO-B(B) Spec
- Typical Application(s) : Widefield Microscopy
- Coating : Sputter/Hard Coated
- Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter (for standard sizes)
- Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes (for standard sizes)
*** For filters larger than 25mm and dichroics larger than 26x38mm, please contact us for pricing. ( Tel. 02-3473-4188)
