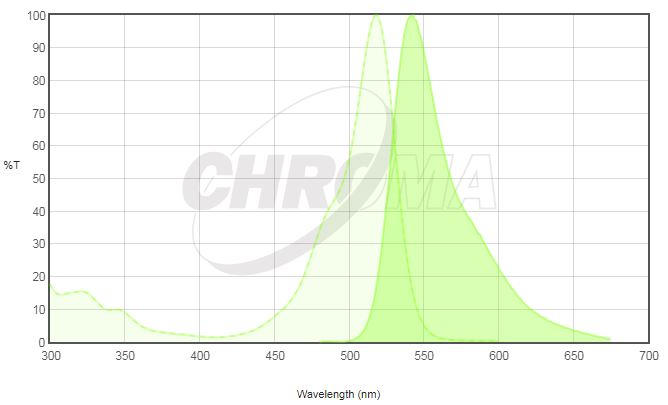

Spectrum Chart
AlexaFluor 514 Spectrum
| Excitation (㎚) | Emission (㎚) |
| 517 | 539 |
Recommended Filter Set
-
일반 형광 Lighting source 사용시
| Filter Model No. | Excitation filter (㎚) | Dichroic mirror (㎚) | Emission filter (㎚) | Remarks |
| 39003 | 495/20 (485~505) |
515 (LP) | 535/30 (520~550) |
Narrow Excitation band, Bandpass Emission |
| 49003 | 500/20 (490~510) |
515 (LP) | 540/30 (525~555) |
Narrow Excitation band, Bandpass Emission |
| 49023 | 480/40 (460~500) |
510 (LP) | 535/50 (510~560) |
Wide Excitation band, Bandpass Emission |
-
레이저 Lighting source 사용시
| Filter Model No. | Excitation filter (㎚) | Dichroic mirror (㎚) | Emission filter (㎚) | Remarks |
| 49905 | 514/10 (509~519) |
514 (LP) | 545/40 (525~565) |
For use with laser between 511~517㎚
Narrow Excitation band, |
| 49906 | 514/10 (509~519) |
514 (LP) | 570/50 (545~595) |
For use with laser between 511~517㎚
Narrow Excitation band, |
