JNOPTIC Filter 49031
Download Catalog_49031
49301 Spectrum
| Filters | Type |
| ET569/25x | EX |
| T588lpxr | BS |
| ET615/40m | EM |
– Filter set for Alexa Fluor 568, Cy3.5
- Main Fluorochromes : AlexaFluor 568
| Excitation (㎚) | Emission (㎚) |
| 578 | 603 |
This is a narrow-band filter set intended for applications where multiple fluorochromes are present in a sample and spectral separation from neighboring fluorochromes is essential. The 49008 set will provide a brighter signal, but may provide less effective spectral separation.

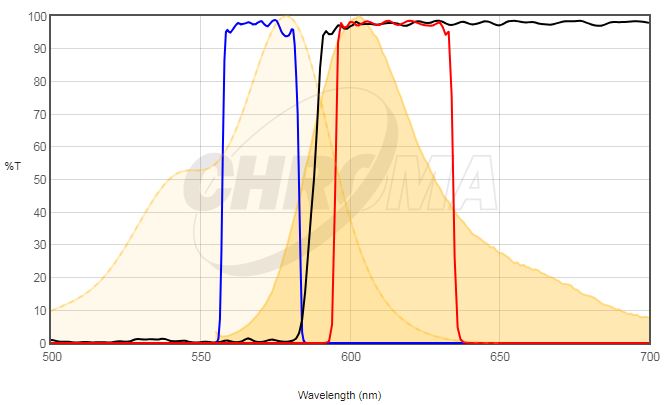

Spectrum Comparison Fluor and 49031
Best with these fluorochromes

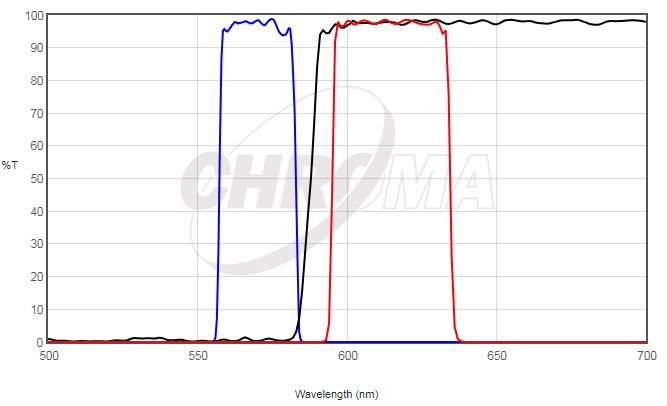

49031 Spec
- Typical Application(s) : Widefield Microscopy
- Coating : Sputter/Hard Coated
- Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter
- Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes
