Camera, Fluorescence

AcquCAM Silver

AcquCAM Silver

( Down load Catalog_ACQUCAM SILVER )

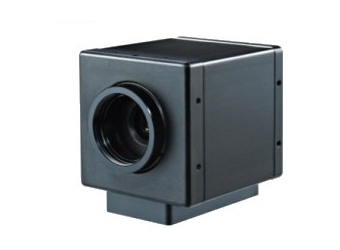

AcquCAM Silver



 JNOPTIC USB CCD Camera, AcquCAM Silver serves to acquire, visualize, archive and analyze images. They are used in production automation, quality assurance, logistics and safety engineering applications and in medicine and science. Developers and system engineers prefer JNOPTIC USB CCD cameras due to ease operation for system integration.

AcquCAM Silver camera has 1/1.8 CCD Mono Sensor with USB 2.0 and works with resolution of 1600×1200 @ 12fps. Self-developed WDM-based drivers provide stable stream and C & CS mount lens can used in.

  • 2 Mega pixel CCD camera
  • Mono, progressive scan
  • USB 2.0 interface
  • 1600×1200 pixel resolution
  • Up to 12 images/s
  • Preview software provided (JNOPTIC Capture)
  • Software compatible with Windows XP/ Vista/ 7 operating systems



Apply Pseudo color for live fluorescence

Increased resolution by applying PSEUDO COLOR function when observing fluorescence image.
Increased resolution by applying PSEUDO COLOR function
when observing fluorescence image.
Shooting images of fluorescence sample
Shooting images of fluorescence sample



Emphasis function on variety of images



Getting fast and clear image  with general light source

AcquCAM Silver_11



[Specification]
Spec Description
Size 1/1.8 inch
Resolution H: 1600, V: 1200
Pixel size H: 4.4 µm, V: 4.4 µm
Video formats

& Frame rate

 1600×1200 RGB32 @ 12, 7.5, 3.75 fps
1600×1200 Y800 @ 12, 7.5, 3.75 fps
Sensitivity 0.15 lx
Exposure time 1/10000 to 30 s
Lens mount C/Cs mount
Interface USB 2.0
Power supply 4.5 to 5.5 VDC
Dimensions H: 50.6 mm, W: 50.6 mm, L: 56 mm
Mass 265 g
Camera

AcquCAM Gold

Down load Catalog ACQUCAM GOLD

AcquCAM Gold

 JNOPTIC USB CCD Camera, AcquCAM Gold serves to acquire, visualize, archive and analyze images. They are used in production automation, quality assurance, logistics and safety engineering applications and in medicine and science. Developers and system engineers prefer JNOPTIC USB CCD cameras due to ease operation for system integration.

AcquCAM Gold camera has 1/1.8 CCD Color Sensor with USB 2.0 and works with resolution of 1600×1200 @ 12fps. Self-developed WDM-based drivers provide stable stream and C & CS mount lens can used in.

  • 2 Mega pixel CCD camera
  • Color, progressive scan
  • USB 2.0 interface
  • 1600×1200 pixel resolution
  • Up to 12 images/s
  • Preview software provided (JNOPTIC Capture)
  • Software compatible with Windows XP/ Vista/ 7 operating systems



General purpose CCD camera of in-depth image



Emphasis function on variety of images

With emphasis function, BLACK BALANCE / AUTO LEVEL of ARM on variety images, you could acquire cleaner and sharper images.



Obtain sharp images quickly

AcquCAM Gold_13

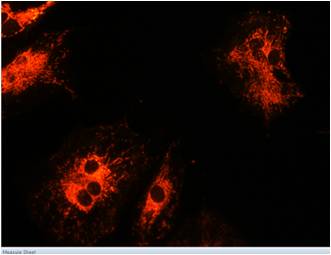

Composite images of fluorescence sample image
These images were shot by AcquCAM Gold Package.



Getting fast and clear image even with general light source

Metal specimen with shoot by stereo microscope and LED lighting source
Metal specimen with shoot by stereo microscope and LED lighting source



[Specification]

Spec Description
Size 1/1.8 inch
Resolution H: 1600, V: 1200
Pixel size H: 4.4 µm, V: 4.4 µm
Video formats & Frame rate 1600×1200 RGB32 @ 12, 7.5, 3.75 fps
1600×1200 Y800 @ 12, 7.5, 3.75 fps
Sensitivity 0.15 lx
Exposure time 1/10000 to 30 s
Lens mount C/Cs mount
Interface USB 2.0
Power supply 4.5 to 5.5 VDC
Dimensions H: 50.6 mm, W: 50.6 mm, L: 56 mm
Mass 265 g



Camera

AcquCAM Pro/U

AcquCAM Pro/U

Down load Catalog _ AcquCAM Pro/UAcquCAM Pro/U



AcquCAM Pro/U offers perfect resolution of the images as a professional microscope digital camera. This is CCD that provides more sophisticated image than CMOS, and offers 1.3 mega pixel high-definition images. With convenience of use and fast transfer rate of 400Mbps, high quality images can be observed at rate of 15 frames per second.

  • 1.3 Mega pixel CCD camera
  • Color, Progressive scan
  • Lower fixed Pattern Noise
  • Auto white balance support
  • RGB Bayer video output
  • Preview software provided (JNOPTIC Capture)
  • Software compatible with Windows XP/ Vista/ 7 operating systems

Minimum noise of  wide use CCD Camera



Black balance and Auto Level of ARM on variety images

AcquCAM Pro U_17



Minimum noise even long-time exposure

AcquCAM Pro U_16



[Specification]

Spec Description
Size 1/2 inch
Resolution H: 1280, V: 960
Pixel size H: 4.65 µm, V: 4.65 µm
Video formats & Frame rate 1280×960 UYVY @ 7.5, 3.75 fps
1280×960 BY8 @ 15, 7.5, 3.75 fps
Sensitivity 0.15 lx
Exposure time 1/10000 to 30 s
Lens mount C/Cs mount
Interface USB 2.0
Power supply 4.5 to 5.5 VDC
Dimensions H: 50.6 mm, W: 50.6 mm, L: 56 mm
Mass 265 g



Camera

AcquCAM 3

Down load catalog – 준비중

3 Mega pixel CMOS camera Color, Progressive scan High speed USB 2.0 Interface (480Mbits/sec) 10 fps at 2048×1536 resolution

AcquCAM3 is designed for acquiring the microscope image. 3 mega pixel image for microscope image provides an optimized solution. By USB 2.0 interface, with only one cable connection, the 3 mega pixel image can be observed in 10 frames per second and microscope image can be observed, as up to 35.5 frames of high-speed.

  • 3 Mega pixel CMOS camera
  • Color, Progressive scan
  • High speed USB 2.0 Interface (480Mbits/sec)
  • 10 fps at 2048×1536 resolution / up to 35.5 fps at 1024×768 resolution
  • Auto white balance support
  • RGB Bayer video output
  • All camera parameters adjustable via the computer
  • Preview software provided (JNOPTIC Capture)
  • Software compatible with Windows XP/ Vista/ 7 operating systems

Wide use of high speed CMOS camera

With emphasis function, BLACK BALANCE / AUTO LEVEL of ARM
on variety images, you could acquire cleaner and sharper images.

그림17

High sensitive observation of 3 mega pixel

그림15

[Specification]
Spec Description
Size 1/2 inch
Resolution H: 2048, V: 1536
Pixel size H: 3.2 µm, V: 3.2 µm
Video formats

& Frame rate

 2048×1536 RGB32 @ 10, 7.5, 5, 3.75 fps
1024×768 RGB32 @ 35.5, 30, 15, 10 fps
2048×1536 Y800 @ 10, 7.5, 5, 3.75 fps
1024×768 Y800 @ 35.5, 30, 15, 10 fps
Sensitivity 5 lx
Exposure time 1/10,000 to 4 sec
Lens mount C/Cs mount
Interface USB 2.0
Power supply 4.5 to 5.5 VDC
Dimensions H: 50.6 mm, W: 50.6 mm, L: 29 mm
Mass 140 g
