OpTIC Eye (Auto)

JNOPTIC Image Analysis Software OpTIC Eye Series

Catalog_OpTIC Eye

  1. OpTIC Eye (Auto)

기본측정+보고서+오토카운팅(입도분석용)
– 셀이미지 자동측정(5단계 easy측정)
: 영상분할, 측정항목설정, 측정, 분류, 성적서기능
– 면적, 면적비, 반경, 직경등 15개 항목 자동측정

Auto Counting

영상을 자동 분석하는 기능입니다. 영상을 개체들(Objects)과  배경(Background)으로 분할(Segmentation)함 으로써 측정할 영역을 한번에 검출해내고, 면적 등을 자동측정 합니다. Auto Count는 위의 차례대로 측정이 이루어 집니다.

  • 영상분할(Segmentation)
  • 측정항목설정(Define Measure)
  • 측정(Measure)
  • 분류(Classification)
  • 성적서(Report)

측정 항목 설정(Define Measure)

1

  • 원하는 측정 항목 설정
  • 측정항목별 그림에 의한 상세설명
  • 구간 설정: 상한, 하한 적용가능

측정결과를 분석/분류 (Classification)

23

View Measurement를 통한 실시간 측정 항목 display 측정

크기별로 그룹화(Classification), 그룹별 색상화 가능

Report

4

측정결과를 4가지 형태의 Chart로 표시: Histogram, Line graph, Pie, Scatter-gram Excel 전송 가능

Physiology

JNO-WI-3

X Y Mover & Bridge Stage

Description
Material   Aluminum
표면 처리   Black –Anodizing
Travel Range (mm)   X    ±12.5     Y    ±12.5
높이 (mm)   170  ~ 220
Tap Hole 규격   M6
Tap Hole 간격 (mm)   X    25    Y    25
Height Measure

JNO-MHU

JNO-MHU(Height Measuring Unit)

JNO-MHU is equipment to measure the height of sample, equipped with Z-axis stage handle. It could be equipped easily with new purchasing or existing microscope

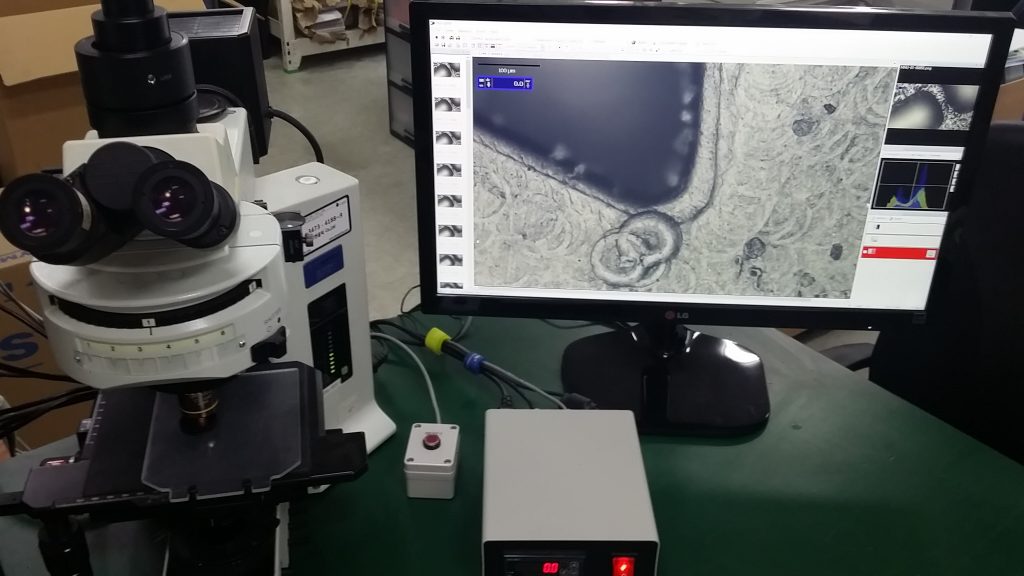

20160811_143939

Screen Capture Image ( JNO-ARM )
ARM Capture for JNO-MHU
JNO-ARM with JNO-MHU

<  Consist of  >

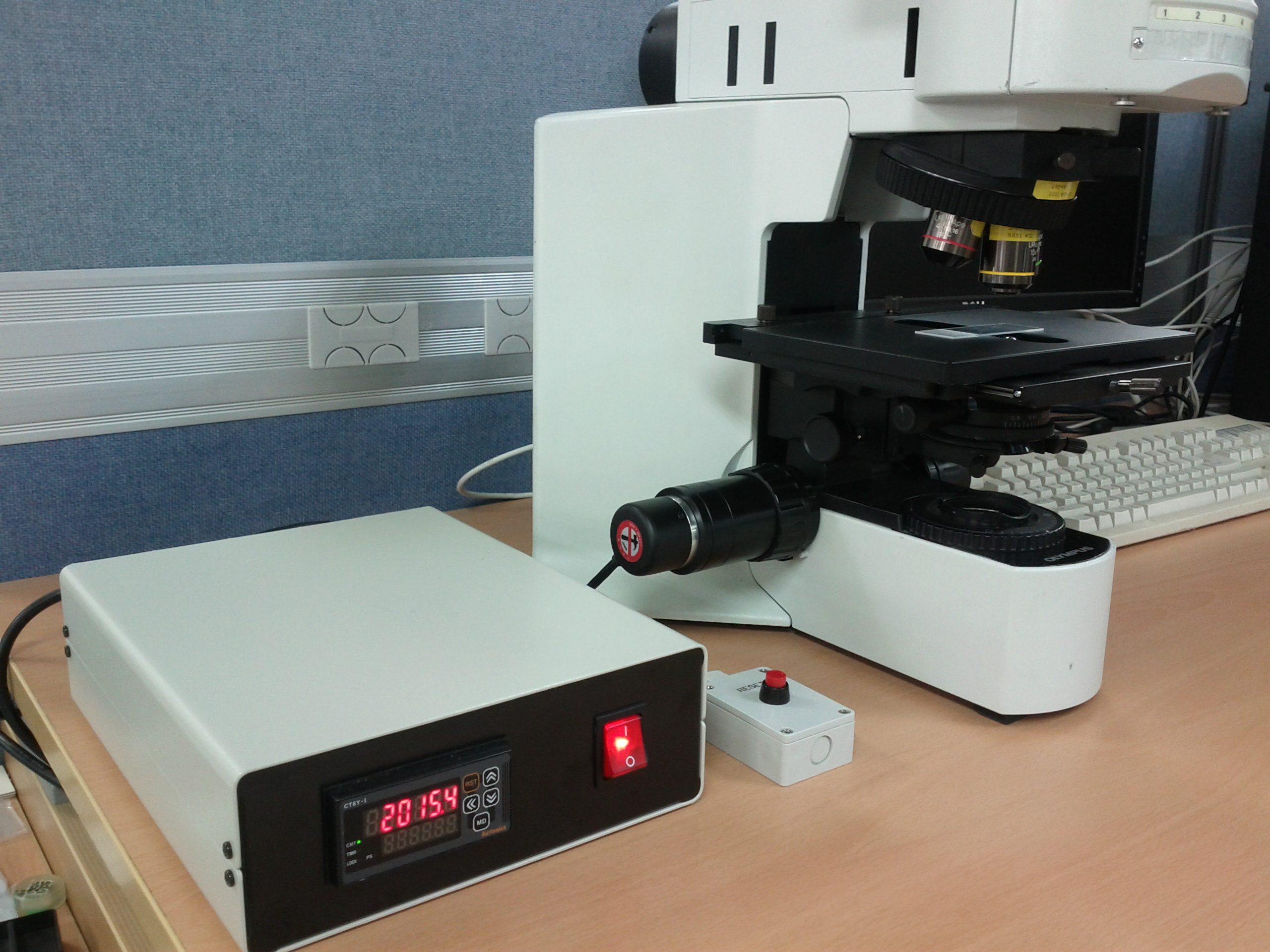

JNO-MHU_01

Responding Model
Measurement value unit
Recommended measuring height
CX 41
0.2 ㎛
Below ± 2000㎛
CKX 41
0.2 ㎛
Below ± 2000㎛
BX – FM
0.2 ㎛
Below ± 2000㎛
BX 51/53
0.1 ㎛
Below ± 1000㎛
MX 51
0.1 ㎛
Below ± 1000㎛
MX 61L/61
0.1 ㎛
Below ± 1000㎛

 HOW TO MEASURE BY JNO-MHU
Camera, Fluorescence, Physiology

AcquCAM 23S

AcquCAM 23S

(Down load Catalog ACQUCAM 23S)

  • USB 3.0 Monochrome Camera
  • 1/1.2 ” Exmor Sensor
  • 1920×1200 pixel
  • Trigger input and I/O

AcquCAM 23S
EXMOR Sensors: Next-generation imaging sensors based on CMOS, increase the strength and reduce noise.



High sensitivity camera available from visible to IR range

20151120_1(CA1 pyramidal neuron)
Apply high sensitivity EXMOR sensor with additional filter block visible range, IR Cut filter image could be observed.



Available wider range of observation

AcquCAM 23S_6
By applying a 1 / 1.2 ” EXMOR sensor, you can observe a wider range of superior sensitivity image.
These images were shot by AcquCAM 23S Package.

High sensitivity and fast frame image

AcquCAM 23S_(CA3 pyramidal neuron)

AcquCAM 23S_(Dentate gyrus Granule cell)
To maximize the range of imaging possible observation with fast frame 54Fps and high sensitivity 0.015 lx .

[Specification]

Spec Description
Size 1/1.2 inch
Resolution H: 1920, V: 1200
Pixel size H: 5.86 µm, V: 5.86 µm
Video formats

& Frame rate

 1920×1200 Y16 @ 25 fps

1920×1200 Y800 @ 54 fps
Sensitivity 0.015 lx
Exposure time 1/100000 to 30 s
Lens mount C/Cs mount
Interface USB 3.0
Power supply 4.5 to 5.5 VDC
Dimensions H: 29 mm, W: 29 mm, L: 43 mm
Mass 65 g



Camera, Fluorescence

AcquCAM 23G

AcquCAM 23G

(Down load Catalog ACQUCAM 23G)

  • USB 3.0 Color Camera
  • 1/1.2 ” Exmor Sensor
  • 1920×1200 pixel
  • Trigger input and I/O

AcquCAM 23G

The displays live digital images with gradual smoothness and combines exceptional resolution  with faithful color reproduction.The new sensors feature a global shutter function and able to capture a high-speed moving image without focal plane distortion. High-speed processing, low noise and low power dissipation by using column-parallel A/D conversion. equipped with trigger mode, and the external pulse can control accumulation time. The Sensor also have a pulse output function to indicate respective conditions during shutter operation and can be coordinated with peripheral circuits. High-definition images can be displayed live at a rate of high frames per second. without compression. Such imaging quality enables even the finest cellular regions to be observed clearly and distinctly without deterioration. While focusing is made stress free.

Universal camera- wide range of image acquisition  is available

Setting function of variety color images

AcquCAM23_16
With wide range of color temperature setting function, you can obtain a clear image of high sensitivity in accordance with the characteristics of samples you want to observe.



Live sharpness adjustment

You can observe and obtain sharp images by applying the sharpness function even when the live video output
You can observe and obtain sharp images by applying the sharpness function even when the live video output





[Specification]
Spec Description
Size 1/1.2 inch
Resolution H: 1920, V: 1200
Pixel size H: 5.86 µm, V: 5.86 µm
Video formats

& Frame rate

 1920×1200 RGB32 @ 54 fps

1920×1200 Y16 @ 25 fps

1920×1200 Y800 @ 54 fps
Dynamic range 8 / 12 bit
Exposure time 1/100000 to 30 s
Lens mount C/Cs mount
Interface USB 3.0
Power supply 4.5 to 5.5 VDC
Dimensions H: 29 mm, W: 29 mm, L: 43 mm
Mass

65 g



Camera, Fluorescence

AcquCAM Silver3

AcquCAM Silver3

(Down load Catalog_ACQUCAM SILVER3)

AcquCAM Silver3



 AcquCAM Silver3 camera has 1/1.8 CCD Color Sensor with USB 3.0 and works with resolution of 1600×1200 @ 20fps. Self-developed WDM-based drivers provide stable stream and C & CS mount lens can used in.

  • 2 Mega pixel CCD USB 3.0 camera
  • High sensitive monochrome
  • Preview software provided (JNOPTIC Capture)
  • Software compatible with Windows XP/ Vista/ 7/ 8 operating systems

Apply Pseudo color for live fluorescence

Increased resolution by applying PSEUDO COLOR function when observing fluorescence image.
Increased resolution by applying PSEUDO COLOR function
when observing fluorescence image.



Apply Pseudo color for live fluorescence

Shooting images of fluorescence sample
Shooting images of fluorescence sample



Emphasis function on variety of images



Getting fast and clear image  with general light source

Shooting by stereo microscope and LED lighting source
Shooting by stereo microscope and
LED lighting source



[Specification]

Spec Description
Size 1/1.8 inch
Resolution H: 1600, V: 1200
Pixel size H: 4.4 µm, V: 4.4 µm
Video formats

& Frame rate

 1600×1200 RGB32 @ 12, 7.5, 3.75 fps
1600×1200 Y800 @ 12, 7.5, 3.75 fps
Sensitivity 0.05 lx
Exposure time 1/10000 to 30 s
Lens mount C/Cs mount
Interface USB 3.0
Power supply 4.5 to 5.5 VDC
Dimensions H: 29 mm, W: 29 mm, L: 43 mm
Mass 65 g



Camera

AcquCAM Gold3

AcquCAM Gold3

(Down load Catalog_ACQUCAM GOLD3)



 AcquCAM Gold3 camera has 1/1.8 CCD Color Sensor with USB 3.0 and works with resolution of 1600×1200 @ 20fps. Self-developed WDM-based drivers provide stable stream and C & CS mount lens can used in.

  • 2 Mega pixel CCD USB 3.0 camera
  • Color, Progressive scan
  • Preview software provided (JNOPTIC Capture)
  • Software compatible with Windows XP/ Vista/ 7/ 8 operating systems



General purpose CCD camera of in-depth image



Emphasis function on variety of images

With emphasis function, BLACK BALANCE / AUTO LEVEL of ARM on variety images, you could acquire cleaner and sharper images.



Obtain sharp images quickly

Rapid and smooth frame of Max. 20 fps These images were shot by AcquCAM Gold3 Package.
Rapid and smooth frame of Max. 20 fps
These images were shot by AcquCAM Gold3 Package.



Getting fast and clear image with general light source

Metal specimen with shoot by stereo microscope and LED lighting source
Metal specimen with shoot by
stereo microscope and LED lighting source



[Specification]

Spec Description
Size 1/1.8 inch
Resolution H: 1600, V: 1200
Pixel size H: 4.4 µm, V: 4.4 µm
Video formats

& Frame rate

 1600×1200 RGB32 @ 20, 15, 7.5, 3.75 fps
1600×1200 Y800 @ 20, 15, 7.5, 3.75 fps
1600×1200 Y16 @ 20, 15, 7.5, 3.75 fps
Sensitivity 0.15 lx
Exposure time 1/10000 to 30 s
Lens mount C/Cs mount
Interface USB 3.0
Power supply 4.5 to 5.5 VDC
Dimensions H: 29 mm, W: 29 mm, L: 43 mm
Mass

65 g


Camera, Fluorescence, Physiology

AcquCAM Pro/S3

AcquCAM Pro/S3

( Down load Catalog_ACQUCAM-PRO/S3 )

AcquCAM Pro/S3

AcquCAM Pro/S3 USB 3.0 camera is the perfect solution for many bio, industrial, medical applications. Utilizing the very sensitive mono CCD sensors, these cameras feature a specialization of fluorescence observations. With up to 30 fps and a trigger delay of less than 5 micro seconds.

  • 1.2 Mega pixel CCDcamera
  • Monochrome, Progressive scan
  • Preview software provided (JNOPTIC Capture)
  • Software compatible with Windows XP/ Vista/ 7/ 8 operating systems



Apply Pseudo color for live fluorescence



Apply Pseudo color for black live fluorescence

AcquCAM Pro S3_6



Emphasis function for variety images



Getting clear image with general light source



[Specification]
Spec Description
Size 1/3 inch
Resolution H: 1280, V: 960
Pixel size H: 3.75 µm, V: 3.75 µm
Video formats

& Frame rate

 1280×960 Y800 @ 30, 20, 15, 7.5, 3.75 fps

1280×960 Y16 @ 30, 20, 15, 7.5, 3.75 fps
Sensitivity 0.015 lx
Exposure time 1/10000 to 30 s
Lens mount C/Cs mount
Interface USB 3.0
Power supply 4.5 to 5.5 VDC
Dimensions H: 29 mm, W: 29 mm, L: 43 mm
Mass 65 g





Camera, Fluorescence

AcquCAM Pro/G3

AcquCAM Pro/G3

Down load Catalog _ AcquCAM PRO/G3

AcquCAM Pro/G3



 AcquCAM Pro/G3 USB 3.0 camera is the perfect solution for many bio, industrial, medical applications. Utilizing the very sensitive color CCD sensors, these cameras feature a specialization of fluorescence observations. With up to 30 fps and a trigger delay of less than 5 micro seconds.

  • 1.2 Mega pixel CCD camera
  • Color, Progressive scan
  • Preview software provided (JNOPTIC Capture)
  • Software compatible with Windows XP/ Vista/ 7/ 8 operating systems



LIVE PSEUDO COLOR

Ex. of applied PSEUDO COLOR for black live fluorescence image



Emphasis function on variety of images

AcquCAM Pro G3_15
With emphasis function, BLACK BALANCE / AUTO LEVEL of ARM on variety images, you could acquire cleaner and sharper images.



Acquiring high sensitive images

These images were shot by AcquCAM Silver Package.
These images were shot by AcquCAM Silver Package.



Acquiring high sensitive images from general lighting source

[Specification]
Spec Description
Size 1/3 inch
Resolution H: 1280, V: 960
Pixel size H: 3.75 µm, V: 3.75 µm
Video formats

& Frame rate

 1280×960 RGB32 @ 30, 20, 15, 7.5, 3.75 fps

1280×960 Y800 @ 30, 20, 15, 7.5, 3.75 fps

1280×960 Y16 @ 30, 20, 15, 7.5, 3.75 fps
Sensitivity 0.05 lx
Exposure time 1/10000 to 30 s
Lens mount C/Cs mount
Interface USB 3.0
Power supply 4.5 to 5.5 VDC
Dimensions H: 29 mm, W: 29 mm, L: 43 mm
Mass 65 g



Camera, Fluorescence

AcquCAM 5U3

AcquCAM5/U3

Down load Catalog _ AcquCAM 5U3

AcquCAM5/U3



 JNOPTIC AcquCAM5/U3 USB 3.0 camera is the perfect solution for many industrial automation, quality assurance, security, surveillance, and medical applications.

Utilizing a color CMOS sensor up to 2592×1944, this camera features a variety of input, output, strobe, and trigger options via an external Hirose port. With up to 15fps and a trigger delay of less than 5 micro seconds, this USB 3.0 camera boasts a low cost and highly versatile imaging solution.

  • 5 Mega pixel CMOS camera
  • Color, Up to 15 images/s
  • Preview software provided (JNOPTIC Capture)
  • Software compatible with Windows XP/ Vista/ 7/ 8 operating systems



Wide useful camera for various field



Emphasis function on variety of images

With emphasis function, BLACK BALANCE / AUTO LEVEL of ARM on variety images, you could acquire cleaner and sharper images. ※ These images were shot by AcquCAM 5/U3 Package.
With emphasis function, BLACK BALANCE / AUTO LEVEL of ARM
on variety images, you could acquire cleaner and sharper images.
※ These images were shot by AcquCAM 5/U3 Package.



Live image observation of rapid frame

Max. 60 Frame/s of RGB 32 bit 640 X 480 Resolution standards
Max. 60 Frame/s of RGB 32 bit 640 X 480 Resolution standards



[Specification]
Spec Description
Size 1/2.5 inch
Resolution H: H: 2592, V: 1944
Pixel size H: 2.2 µm, V: 2.2 µm
Video formats

& Frame rate

 MAX : 2592×1944 @ 15 fps

MIN : 640×480 @ 132 fps
Sensitivity 0.05 lx
Exposure time 1/20000 to 1/4 s
Lens mount C/Cs mount
Interface USB 3.0
Power supply 4.5 to 5.5 VDC
Dimensions H: 29 mm, W: 29 mm, L: 43 mm
Mass 65 g
